Ball Joints

ꄴPrevious： Clevis
ꄲNext： Axle Sleeve







Bearing
series		 Bore range
(mm)		 Sliding
contact
surfaces		 Relubrication
needed		 Integral
seals		 Operating
temperature		 Design features

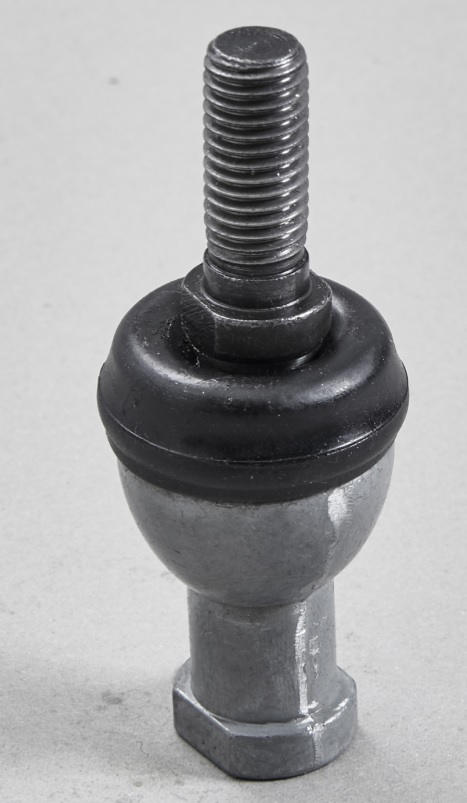

SQZ..RS 　 合金/钢
Alloy/steel		 否
No		 否
No		 -30℃～130℃ Ball joint housing in zinc base alloy.

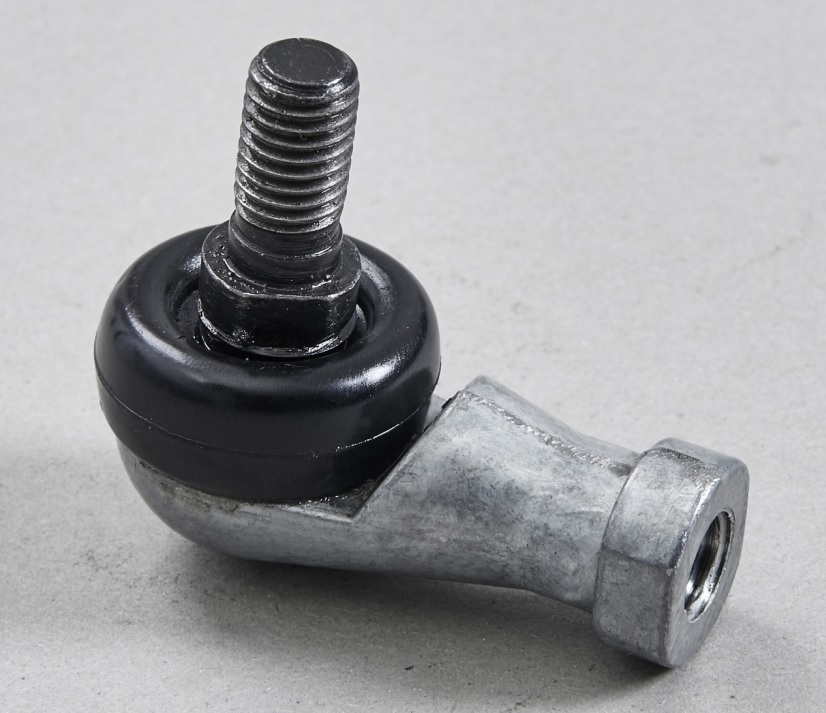

SQ..RS 　 合金/钢
Alloy/steel		 否
No		 是
Yes		 -30℃～130℃ Ball joint housing in zinc base alloy.
SQP..S 　 钢/钢
Steel/Steel		 否
No		 否
No		 -50℃～150℃ Ball joint housing in steel, with security clip.
BL..D/BD 　 合金/钢
Alloy/steel		 是
Yes		 否
No		 -30℃～130℃ Ball joint housing in zinc base alloy.

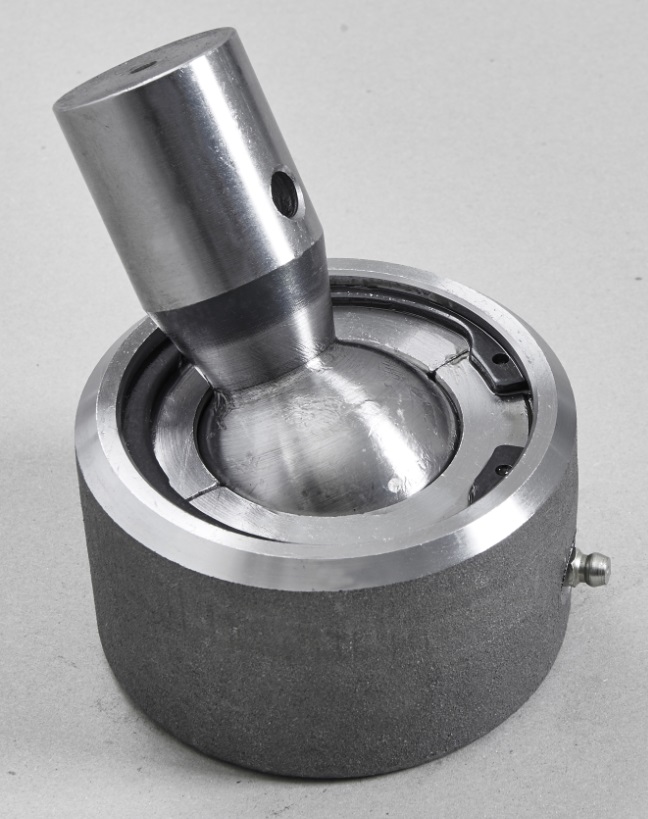

KG17.. 　 钢/钢
Steel/Steel		 是
Yes		 否
No		 -50℃～150℃ Sliding surface of ball stud hardened.
KG18.. 　 钢/钢
Steel/Steel		 是
Yes		 否
No		 -50℃～150℃ Sliding surface of ball stud hardened.
KG19.. 　 钢/钢
Steel/Steel		 是
Yes		 否
No		 -50℃～150℃ Sliding surface of ball stud hardened.





SQZ..RS, SQ..RS,  SQP..S, BL..D/BD

KG17.., KG18.., KG19..
